List of cables

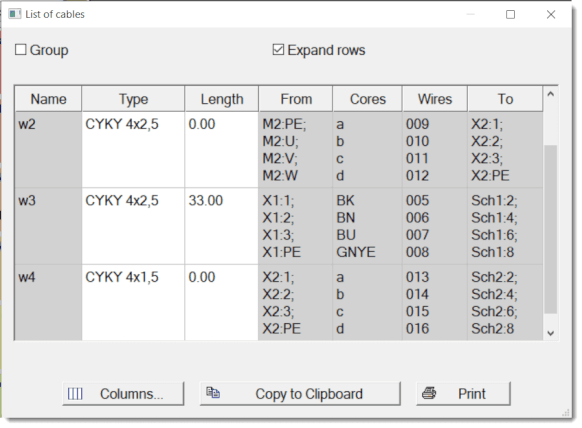

List of cables can be generated by command Outputs - List of cables.
Each row of the list shows:
- cable name
- cable type
- cable length
- attached components (in format symbol:connection point)
- cores
- wires
The Group option displays the sum of cable lengths by cable type.
The Expand Rows option displays each cable core on a single line.
Note:
All wires must have a unique name or number for the cable listing to function properly.
